Make a simple quadruped robot with the 3d printed robot kit #YouMakeRobots. This quadruped robot is powered by an Arduino MEGA and 8 standard hobby servo-motors. YouMakeRobots is a set of 3d printed parts, electronics and software that work together to provide a fun, accessible and affordable robot building experience. Very similar to Lego bricks, the modular construction allows you to put together simple components to build a wide variety of robots. It is easy to get started. For less than $ 100 you get all the electronics, no soldering required. The 3d printed parts are easy to print and print without support. The code provided allows you to interactively control the robot from the command line.
What you need to build a simple quadruped robot

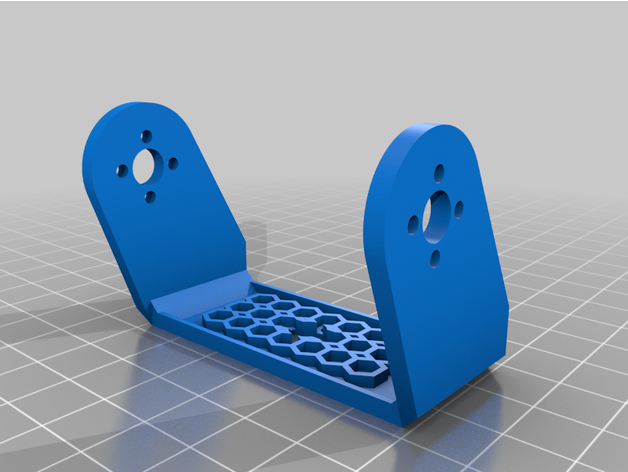

| 4x | F1 |  |

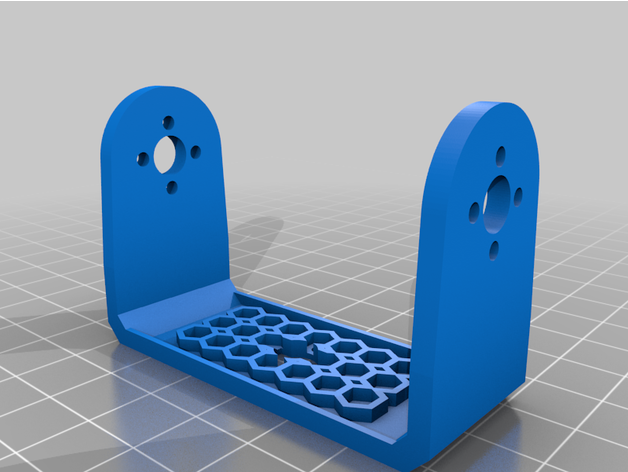

| 4x | F2 |  |

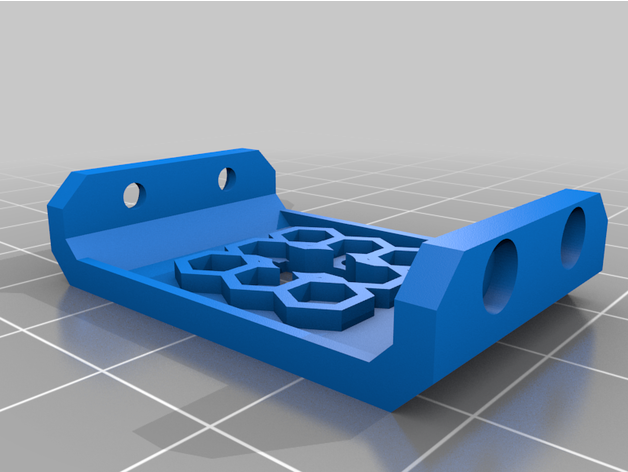

| 8x | F3 |  |

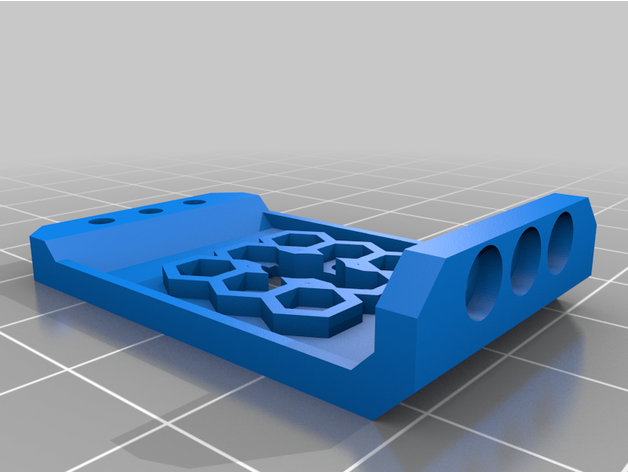

| 4x | F6 |  |
| 1x | F6 (optional, for the head) | |

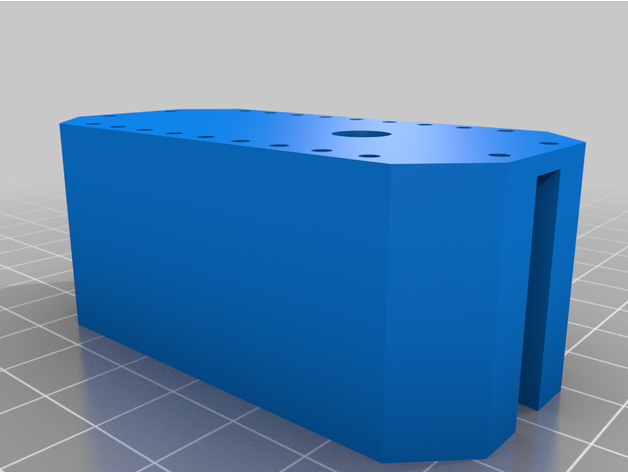

| 8x | Servo_Enclosure_Bottom |  |

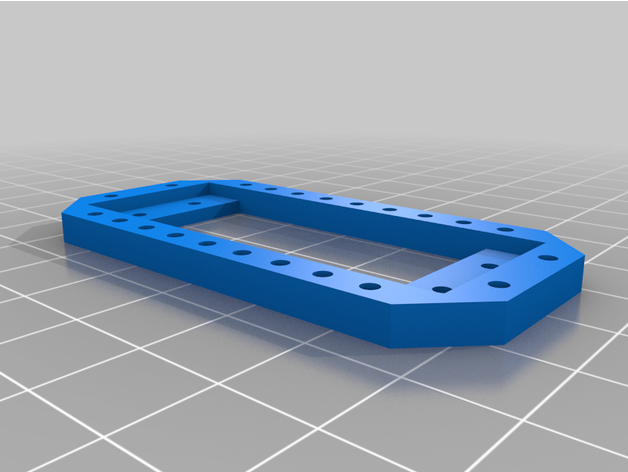

| 8x | Servo_Enclosure_Top |  |

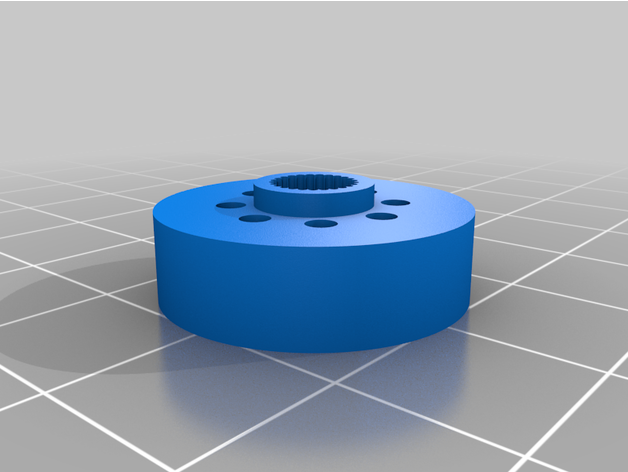

| 8x | Servo_Horn |  |

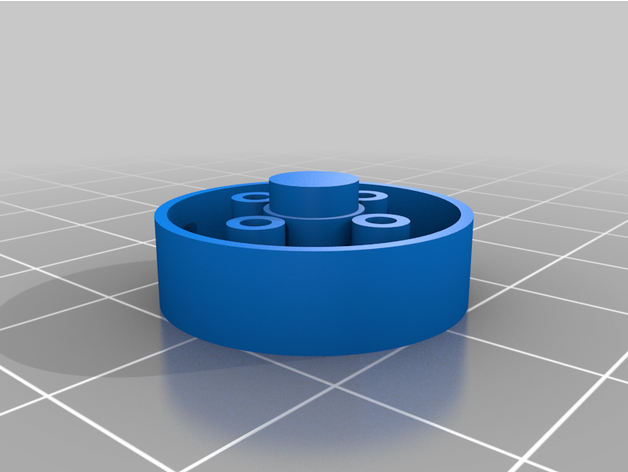

| 8x | Servo_Pin |  |

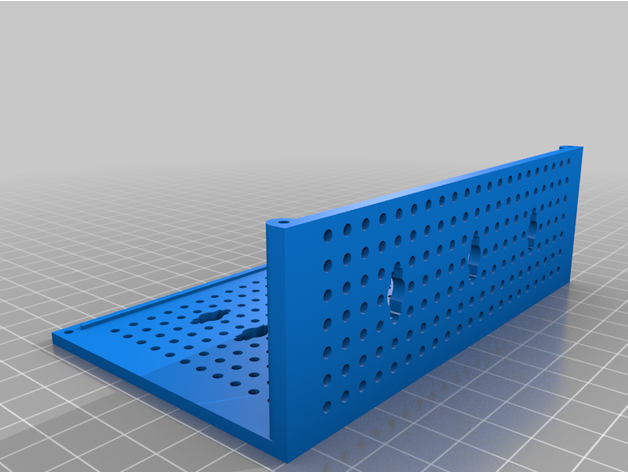

| 2x | F51 |  |

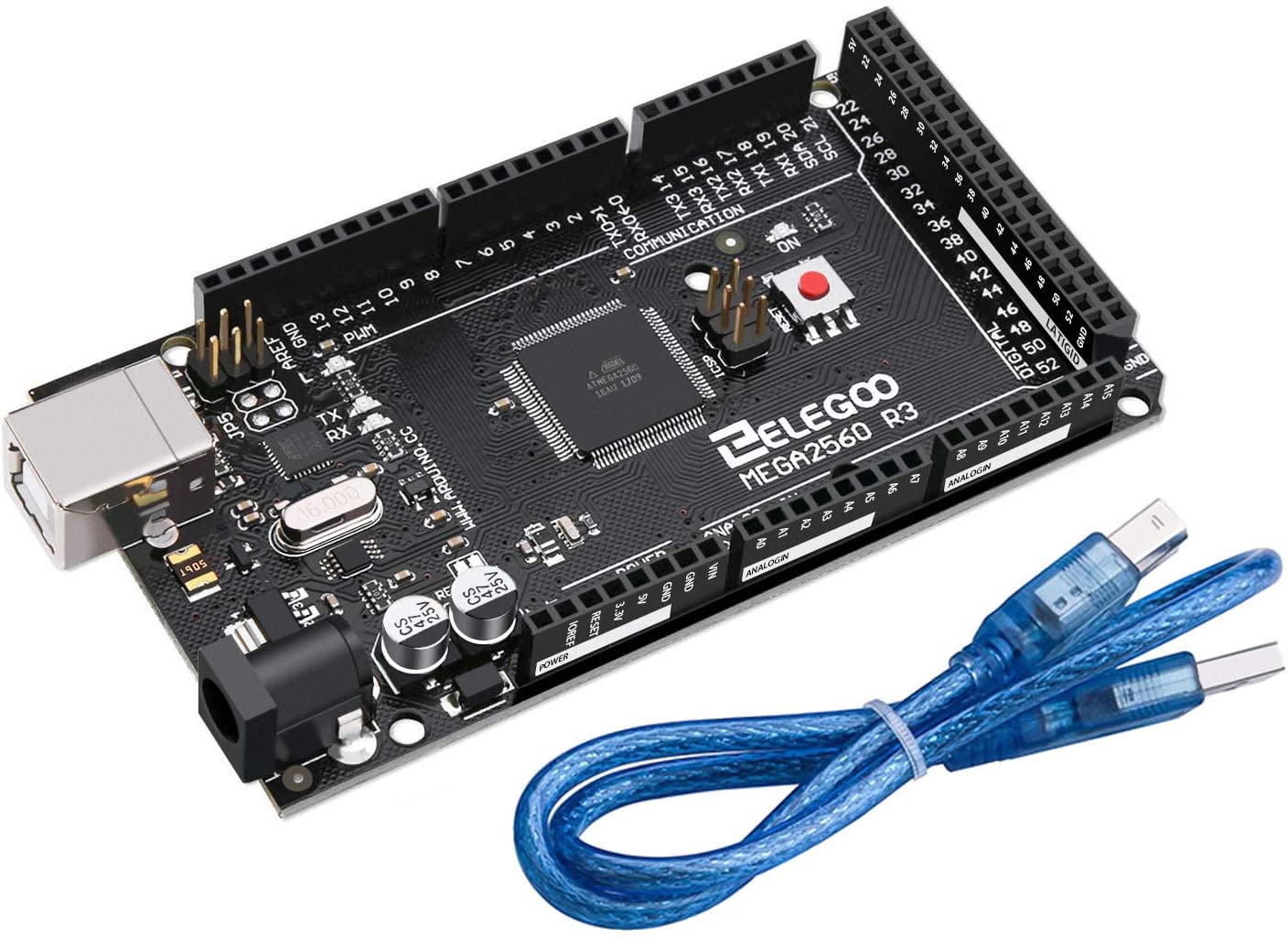

| 1x | Arduino Mega 2560 |  |

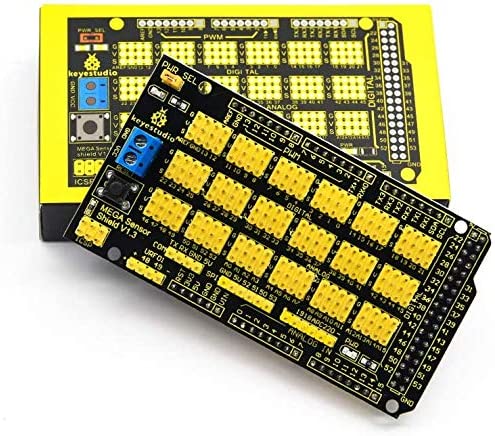

| 1x | MEGA Sensor Shield V1 for Arduino MEGA 2560 |  |

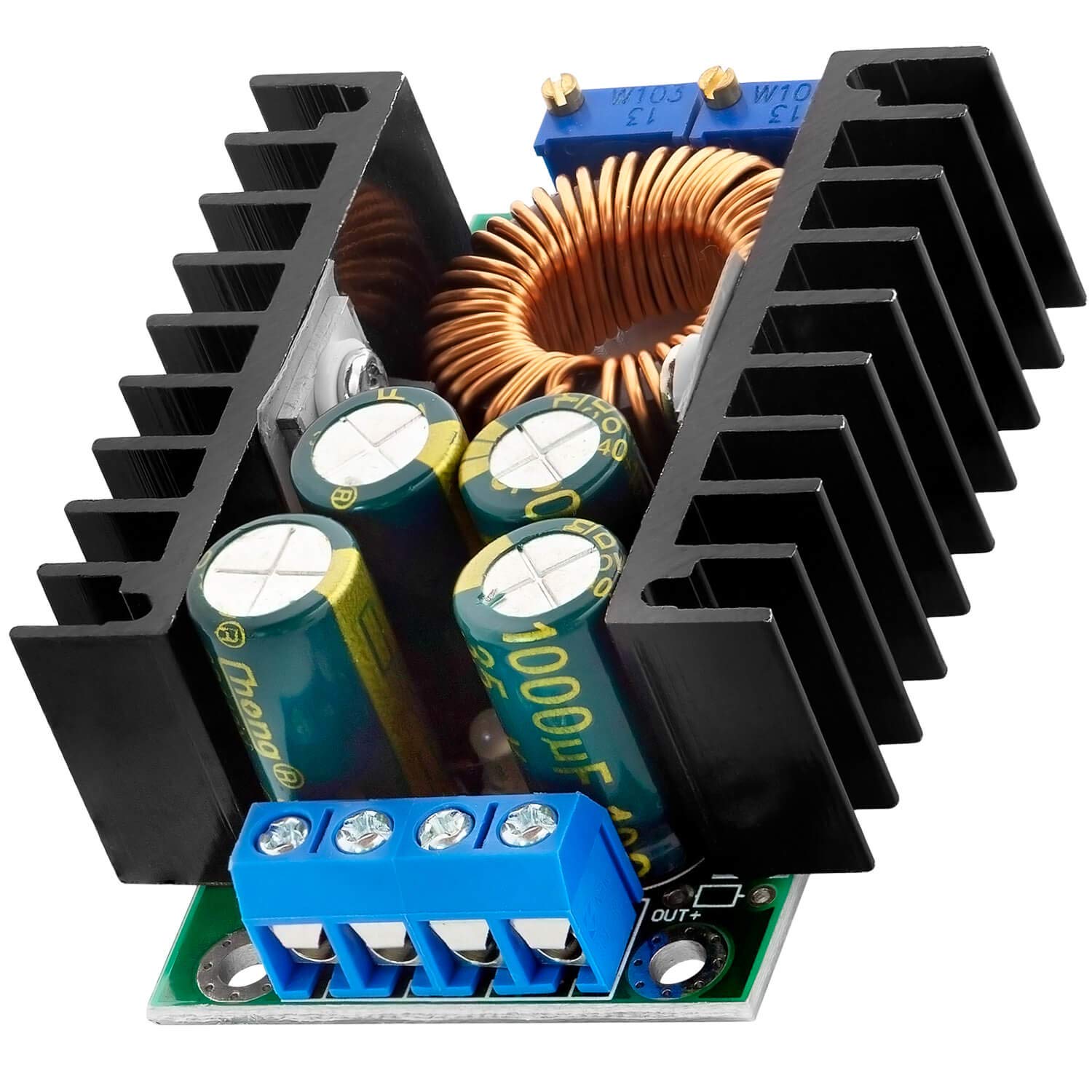

| 1x | XL4016E1 DC-DC converter 5-40V to 1.2-35V |  |

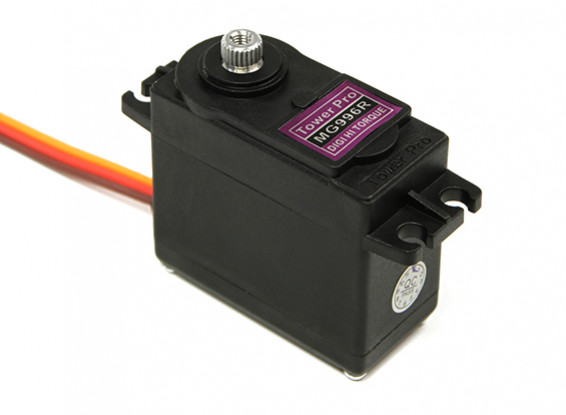

| 8x | Tower Pro MG996R Servo Motor |  |

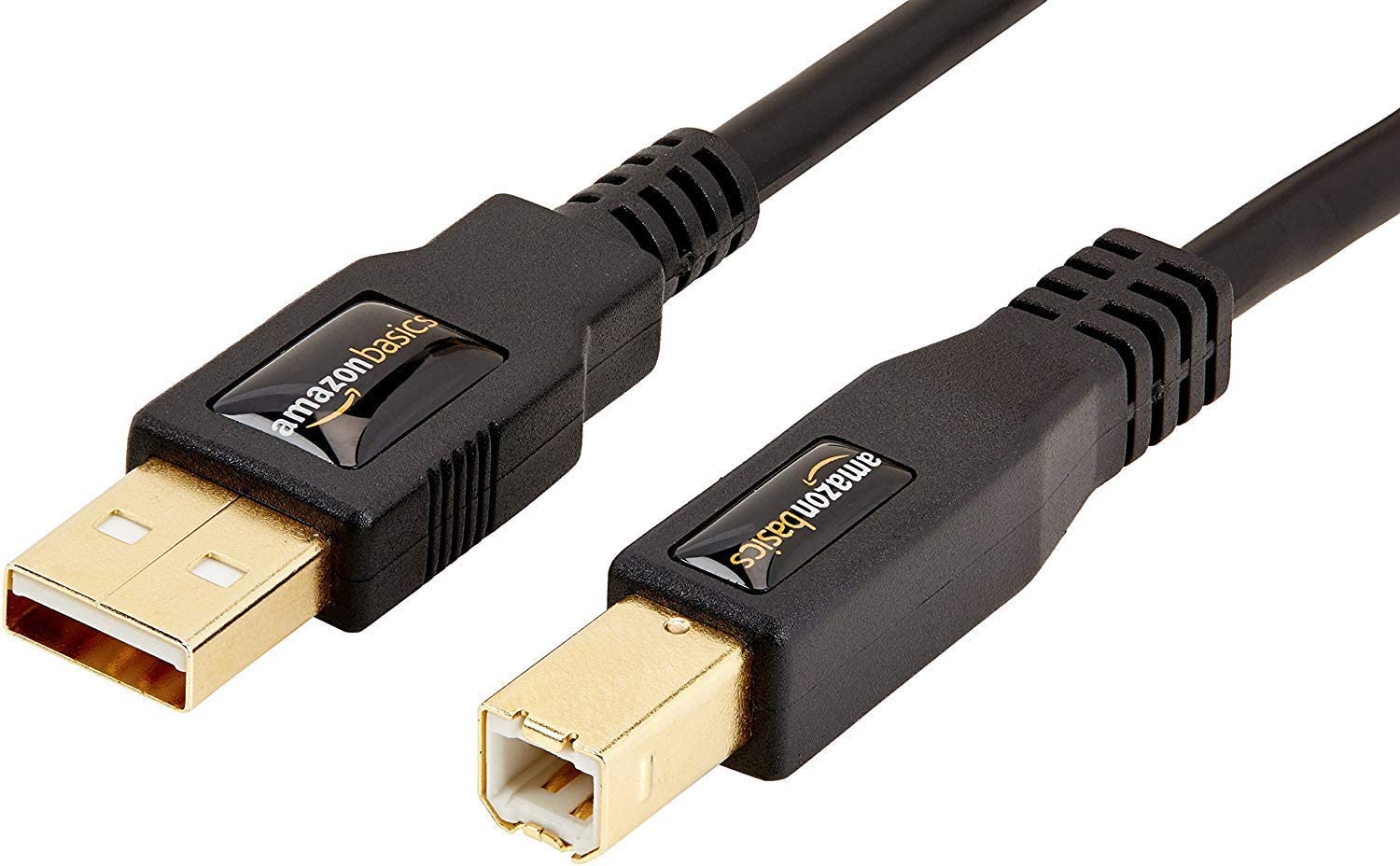

| 1x | Cable USB 2.0 A-Male to B-Male -10 feet (3 meters) |  |
| 1x | Set of 4 hexagonal screwdrivers (1.5 mm, 2mm, 2.5mm and 3mm) |  |
| 1x | 11.1V 3S 1000mAh Lithium-Polymer Battery | |
| 32x | M2x8mm self tapping screw | |
| 16x | M2x4mm Hex Socket Head Cap Screws | |
| 24x | M2x6mm Hex Socket Head Cap Screws | |
| 40x | M2x8mm Hex Socket Head Cap Screws | |
| 44x | M2 Nuts |
How to build a simple quadruped robot?
Additional Ressources
See https://www.youmaketech.com/3d-printed-robot-kit-youmakerobots/
